Live Tracking & WebSocket

Real-time location streaming for authenticated users and public tracking links

Yipii IoT streams real-time vehicle locations over WebSocket using a Pusher-compatible protocol. The IoT backend receives position data from GPS trackers and relays it to connected clients. This guide covers both authenticated fleet tracking and public tracking link integration.

Architecture

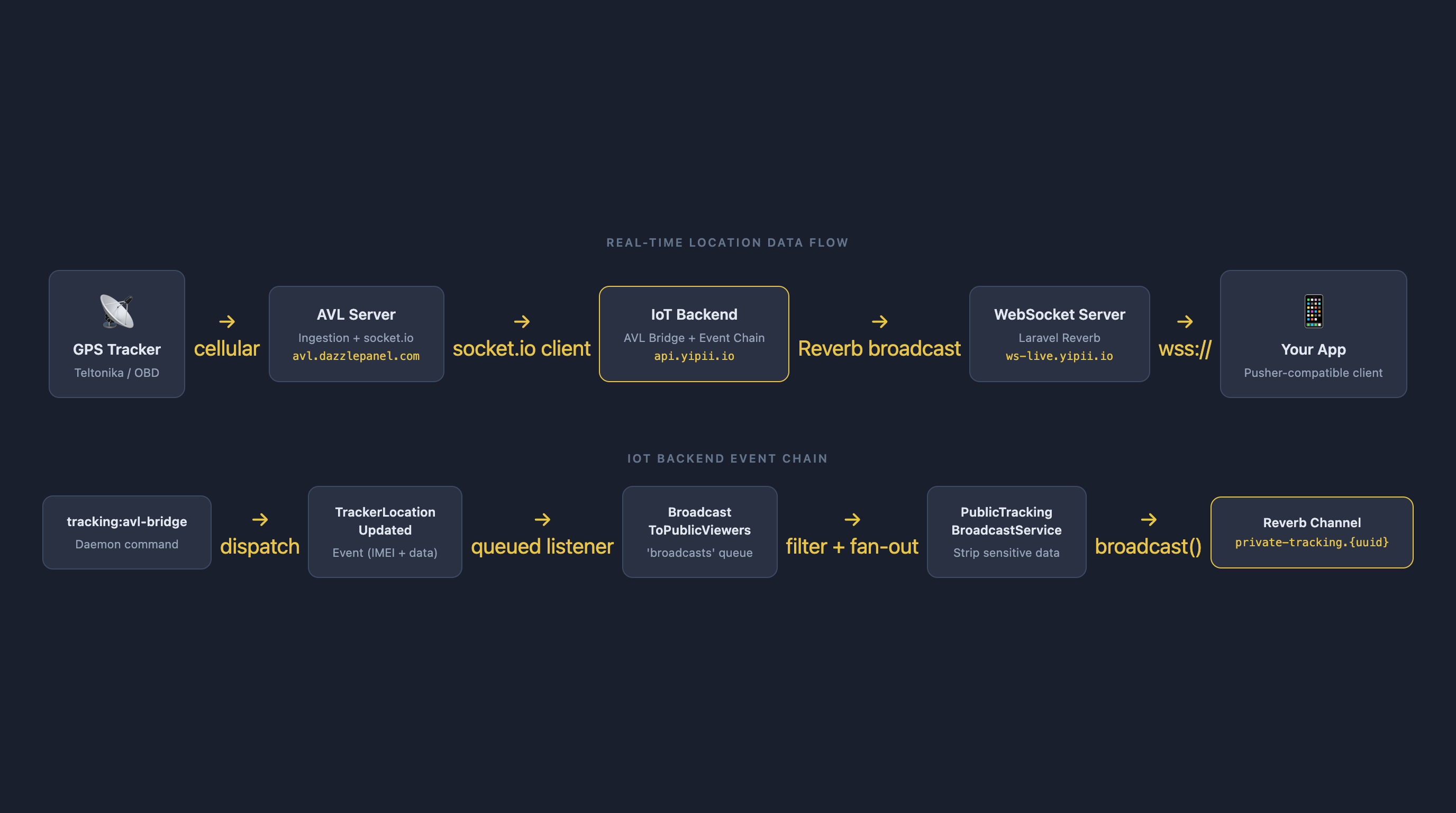

Live tracking architecture: GPS Tracker → Ingestion Server → IoT Backend → WebSocket Server → Your App

GPS trackers installed in vehicles send position data via cellular to the ingestion server. The IoT backend processes and enriches this data, then broadcasts location events via a Pusher-compatible WebSocket server. Your application subscribes to channels to receive updates in real time.

Component	URL
WebSocket Server	`wss://ws-live.yipii.io`
REST API	`https://api.yipii.io`
Broadcasting Auth	`https://api.yipii.io/broadcasting/auth`

Data Flow

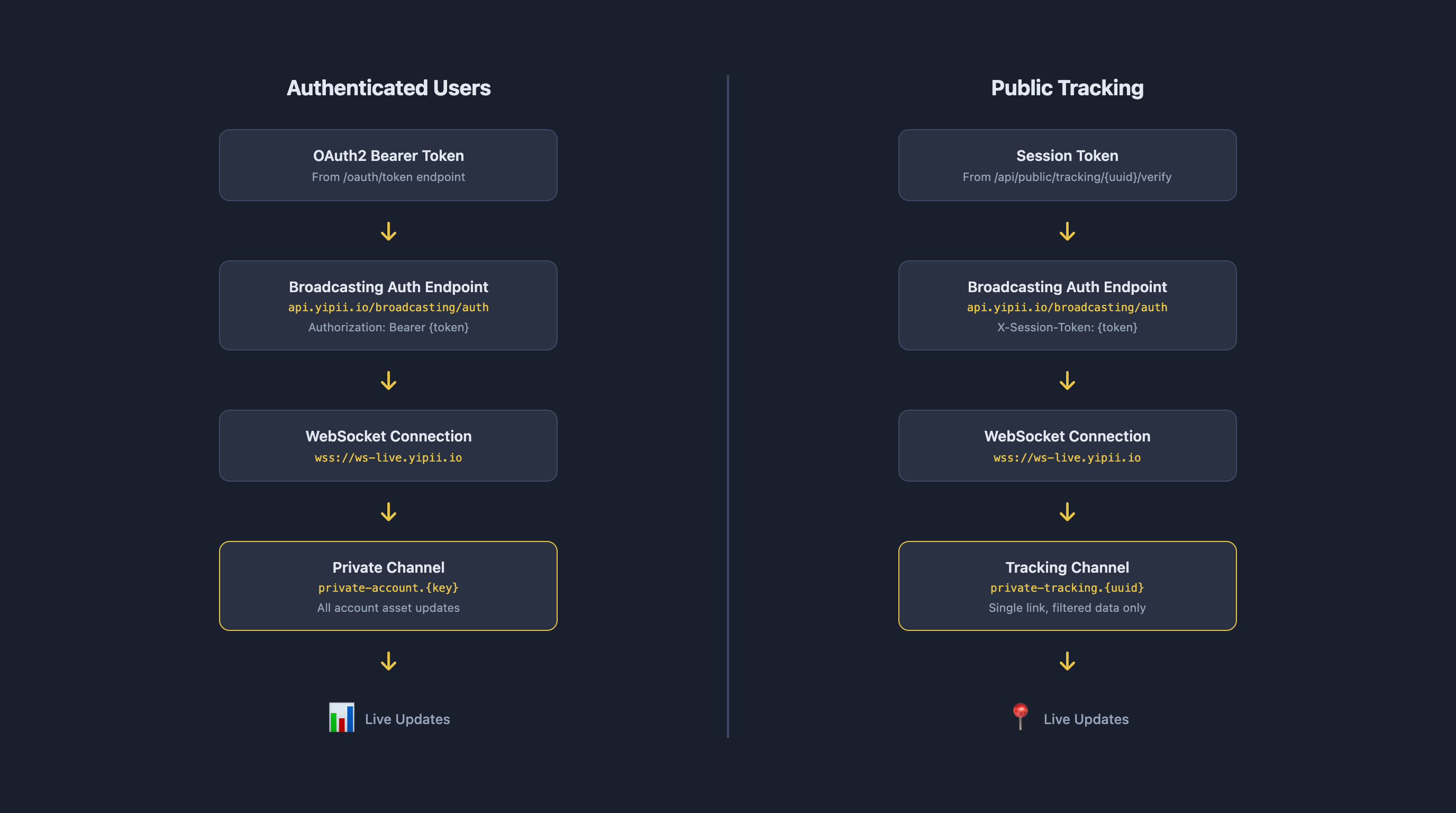

Authentication flows: Authenticated users via OAuth2 token vs Public tracking via session token

Authenticated Live Stream

For dashboard integrations where you have an OAuth2 access token.

Connection

Connect using any Pusher-compatible client library. The WebSocket server speaks the Pusher protocol.

import Pusher from 'pusher-js';

const pusher = new Pusher('your-app-key', {
  wsHost: 'ws-live.yipii.io',
  wsPort: 443,
  wssPort: 443,
  forceTLS: true,
  enabledTransports: ['ws', 'wss'],
  disableStats: true,
  cluster: '',
  authEndpoint: 'https://api.yipii.io/broadcasting/auth',
  auth: {
    headers: {
      'Authorization': `Bearer ${ACCESS_TOKEN}`,
    },
  },
});

Authentication

The same OAuth2 Bearer token from the Authentication guide is used. Pass it in the Authorization header. The auth endpoint validates your token and ensures you only receive updates for assets your account has access to.

Subscribe to a private channel for your account:

const channel = pusher.subscribe(`private-account.${ACCOUNT_KEY}`);

channel.bind('pusher:subscription_succeeded', () => {
  console.log('Connected to live tracking');
});

Events

Event	Payload	Description
`.location.updated`	`LocationUpdate` or `LocationUpdate[]`	Position update for assets
`.alert.triggered`	`AlertData`	Geofence, speed, or maintenance alert

Note the leading dot (.) — required by the server's event naming convention.

Location Update Payload

{
  "assetId": 123,
  "assetName": "Delivery Van 1",
  "latitude": 35.8992,
  "longitude": 14.5141,
  "speed": 65,
  "course": 180,
  "timestamp": 1707216000000,
  "gpsSignal": 12,
  "status": {
    "name": "moving",
    "color": "green",
    "ignition": true,
    "engine": true
  },
  "geoPoint": {
    "street": "Triq il-Kbira",
    "town": "Valletta",
    "country": "Malta"
  }
}

JavaScript Example

import Pusher from 'pusher-js';

const pusher = new Pusher('your-app-key', {
  wsHost: 'ws-live.yipii.io',
  wsPort: 443,
  wssPort: 443,
  forceTLS: true,
  enabledTransports: ['ws', 'wss'],
  disableStats: true,
  cluster: '',
  authEndpoint: 'https://api.yipii.io/broadcasting/auth',
  auth: {
    headers: {
      'Authorization': `Bearer ${ACCESS_TOKEN}`,
    },
  },
});

const channel = pusher.subscribe(`private-account.${ACCOUNT_KEY}`);

channel.bind('.location.updated', (data) => {
  const updates = Array.isArray(data) ? data : [data];

  updates.forEach((loc) => {
    console.log(`${loc.assetName}: ${loc.latitude}, ${loc.longitude}`);
    console.log(`  Speed: ${loc.speed} km/h, Heading: ${loc.course}`);
    console.log(`  Ignition: ${loc.status.ignition}`);
  });
});

channel.bind('.alert.triggered', (data) => {
  console.log(`Alert: ${data.message} (${data.alert_type})`);
});

// Cleanup
// pusher.disconnect();

Python Example

import pysher
import json

pusher = pysher.Pusher(
    key='your-app-key',
    custom_host='ws-live.yipii.io',
    secure=True,
    port=443,
    auth_endpoint='https://api.yipii.io/broadcasting/auth',
    auth_endpoint_headers={
        'Authorization': f'Bearer {ACCESS_TOKEN}'
    }
)

def on_connect(data):
    channel = pusher.subscribe(f'private-account.{ACCOUNT_KEY}')
    channel.bind('.location.updated', on_location)

def on_location(data):
    updates = json.loads(data)
    if not isinstance(updates, list):
        updates = [updates]
    for loc in updates:
        print(f"{loc['assetName']}: {loc['latitude']}, {loc['longitude']}")
        print(f"  Speed: {loc['speed']} km/h")

pusher.connection.bind('pusher:connection_established', on_connect)
pusher.connect()

Public Tracking WebSocket

For public tracking links where viewers don't have full API credentials. Uses session-based authentication with the same WebSocket server.

Overview

1. GET  /api/public/tracking/{uuid}/info      → Link details + access mode
2. POST /api/public/tracking/{uuid}/verify     → Session token (4h validity)
3. Connect WebSocket with session token
4. Subscribe to private-tracking.{uuid}
5. Listen for .location.updated events

Step 1: Get Link Info

Check the tracking link's access mode and status (no auth required):

GET https://api.yipii.io/api/public/tracking/{uuid}/info

{
  "uuid": "a1b2c3d4-e5f6-7890-abcd-ef1234567890",
  "display_name": "Bus Route 42",
  "access_mode": "public",
  "is_active": true,
  "is_expired": false,
  "is_within_schedule": true,
  "branding": {
    "logo_url": "https://...",
    "primary_color": "#E8C547",
    "company_name": "Yipii"
  }
}

Access modes:

Mode	Verification Required
`public`	None — call verify with empty body
`email`	Email address
`email_code`	Email + 6-digit code (sent via email)
`authorized_only`	Whitelisted email address

Step 2: Verify and Get Session Token

POST https://api.yipii.io/api/public/tracking/{uuid}/verify

Public mode (no credentials):

{}

Email mode:

{
  "email": "viewer@example.com"
}

Email + code mode (two requests):

// First: request code
{ "email": "viewer@example.com" }

// Second: submit code
{ "email": "viewer@example.com", "access_code": "123456" }

Response:

{
  "success": true,
  "session": {
    "token": "abc123xyz...",
    "expires_at": "2026-01-30T15:00:00Z",
    "link": {
      "uuid": "a1b2c3d4-...",
      "title": "Bus Route 42"
    }
  }
}

The session token is valid for 4 hours by default.

Step 3: Connect WebSocket

import Pusher from 'pusher-js';

const pusher = new Pusher('public-tracking', {
  wsHost: 'ws-live.yipii.io',
  wsPort: 443,
  wssPort: 443,
  forceTLS: true,
  enabledTransports: ['ws', 'wss'],
  disableStats: true,
  cluster: '',
  authEndpoint: 'https://api.yipii.io/broadcasting/auth',
  auth: {
    headers: {
      'X-Session-Token': sessionToken,
    },
  },
});

const channel = pusher.subscribe(`private-tracking.${uuid}`);

channel.bind('pusher:subscription_succeeded', () => {
  console.log('Subscribed — listening for location updates');
});

Step 5: Listen for Events

Event	Description
`.location.updated`	Vehicle position changed
`.link.expired`	Tracking link expired or disabled
`.schedule.changed`	Entered or exited schedule window
`.vehicle.changed`	Route-based link reassigned to different vehicle

channel.bind('.location.updated', (data) => {
  const { location } = data;

  console.log(`Position: ${location.latitude}, ${location.longitude}`);
  console.log(`Speed: ${location.speed_kmh} km/h`);
  console.log(`Moving: ${location.is_moving}, Ignition: ${location.ignition}`);

  if (location.distance_km !== undefined) {
    console.log(`Distance to destination: ${location.distance_km} km`);
  }
  if (location.eta_minutes !== undefined) {
    console.log(`ETA: ${location.eta_minutes} minutes`);
  }
});

channel.bind('.link.expired', (data) => {
  console.log(`Link expired: ${data.reason}`);
  // reason: "arrival", "time_expired", "disabled", "schedule_ended"
  pusher.disconnect();
});

channel.bind('.schedule.changed', (data) => {
  if (!data.is_active) {
    console.log(data.message); // "Tracking available Mon-Fri 7am-4pm"
  }
});

channel.bind('.vehicle.changed', (data) => {
  console.log(data.message);
  if (data.new_location) {
    // Update map to new vehicle's position
  }
});

Location Event Payload

{
  "location": {
    "latitude": 35.9023,
    "longitude": 14.5134,
    "speed_kmh": 45,
    "heading": 180,
    "timestamp": "2026-01-30T10:30:00+00:00",
    "is_moving": true,
    "ignition": true,
    "street": "Triq il-Kbira",
    "town": "Iż-Żejtun",
    "country": "Malta",
    "distance_km": 0.8,
    "eta_minutes": 1
  }
}

Note: No internal identifiers (asset_id, IMEI, account info) are exposed. The distance_km and eta_minutes fields are only present when the link has arrival-based expiration configured.

Polling Fallback

If WebSocket is unavailable, poll the location endpoint every 30 seconds:

GET https://api.yipii.io/api/public/tracking/{uuid}/location
X-Session-Token: {session_token}

The response includes asset data with location fields matching the WebSocket payload structure.

Swift (iOS)

import PusherSwift

let options = PusherClientOptions(
    authMethod: .authRequestBuilder(authRequestBuilder: { request in
        var req = request
        req.addValue(sessionToken, forHTTPHeaderField: "X-Session-Token")
        return req
    }),
    host: .host("ws-live.yipii.io"),
    port: 443,
    useTLS: true
)

let pusher = Pusher(key: "public-tracking", options: options)
let channel = pusher.subscribe("private-tracking.\(uuid)")

channel.bind(eventName: "location.updated") { event in
    guard let data = event.data else { return }
    // Parse and update map
}

channel.bind(eventName: "link.expired") { event in
    // Show expired state
    pusher.disconnect()
}

pusher.connect()

Kotlin (Android)

val authorizer = HttpAuthorizer("https://api.yipii.io/broadcasting/auth").apply {
    setHeaders(mapOf("X-Session-Token" to sessionToken))
}

val options = PusherOptions().apply {
    setHost("ws-live.yipii.io")
    setWsPort(443)
    setWssPort(443)
    isUseTLS = true
    setAuthorizer(authorizer)
}

val pusher = Pusher("public-tracking", options)
val channel = pusher.subscribePrivate("private-tracking.$uuid")

channel.bind("location.updated") { event ->
    val data = JSONObject(event.data)
    val location = data.getJSONObject("location")
    // Update map
}

channel.bind("link.expired") { event ->
    // Show expired state
    pusher.disconnect()
}

pusher.connect()

Security

Data Exposed to Public Tracking Viewers

Exposed	NOT Exposed
Position (lat/lng)	IMEI number
Speed and heading	Internal device IDs
Moving/stopped status	Account information
Address (street, town)	Track history
ETA and distance to destination	Other assets
Display name	Driver personal data

Session Security

Session tokens are high-entropy random strings tied to a specific tracking link UUID
Cross-link protection — a session for link A cannot access link B's channel
Expiration — sessions expire after a configurable period (default 4 hours)
TLS required — all connections use WSS (port 443)
Revocation — disabling a link immediately disconnects all viewers

Access Control for Public Tracking

Mode	Security Level	Use Case
`public`	Lowest	Customer delivery tracking
`email`	Medium	Known recipients (parents, partners)
`email_code`	High	Sensitive cargo, compliance
`authorized_only`	Highest	Restricted access (warehouse staff)

Authenticated Stream Security

OAuth2 tokens are validated on connection and channel subscription
The server only sends updates for assets the token's account has access to
Subscribing to unauthorized channels is rejected
Token revocation disconnects the client

Scaling & Performance

Each subscribed asset generates location events every 10-30 seconds when moving. Subscribing to 1,000 assets when you display 10 wastes bandwidth and processing.

// Good: subscribe to visible assets only
const channel = pusher.subscribe(`private-account.${accountKey}.assets.${assetId}`);

// Clean up when no longer needed
pusher.unsubscribe(`private-account.${accountKey}.assets.${assetId}`);

Deduplication

GPS trackers may send duplicate positions. Deduplicate by assetId + timestamp:

const seen = new Map();
const MAX_AGE_MS = 5000;

function isDuplicate(update) {
  const key = `${update.assetId}-${update.timestamp}`;
  if (seen.has(key)) return true;

  seen.set(key, Date.now());

  // Cleanup old entries periodically
  if (seen.size > 1000) {
    const cutoff = Date.now() - MAX_AGE_MS;
    for (const [k, time] of seen) {
      if (time < cutoff) seen.delete(k);
    }
  }

  return false;
}

Reconnection

Pusher clients reconnect automatically with exponential backoff. For public tracking, validate the session before reconnecting:

pusher.connection.bind('disconnected', () => {
  fetch(`https://api.yipii.io/api/public/tracking/${uuid}/info`)
    .then(res => res.json())
    .then(info => {
      if (info.is_active && !info.is_expired) {
        pusher.connect(); // Session still good
      } else {
        showExpiredMessage();
      }
    });
});

Rate Limits

Public Tracking:

Endpoint	Limit
`POST /verify`	30 requests/minute per IP
`GET /location` (polling)	60 requests/minute per session
WebSocket connections per IP	100
Messages per second per channel	10

Typical Update Frequency:

Vehicle State	Update Interval
Moving	Every 10-30 seconds
Stopped, ignition on	Every 60 seconds
Stopped, ignition off	Every 5-10 minutes

WebSocket Authentication Errors

Code	Meaning
4001	Invalid session token
4002	Session expired
4003	Tracking link not found
4004	Link expired or inactive
4005	Outside schedule window

Next Steps

Live Demo — Interactive sandbox with simulated WebSocket flow
Reporting Service — Async report generation
Tracking Links — Creating and managing public tracking links
IoT-BE API Reference — Full REST API documentation
Authentication — OAuth2 token setup

Was this page helpful?

Live Tracking & WebSocket

On this page
